New Design Kit from Avnet - UltraZed is here!
Introducing the UltraZed-EG SOM, Starter Kit and Carrier Card!
UltraZed-EG SOM, Starter Kit and Carrier Card
UltraZed-EG™ SOM is a highly flexible, rugged, System-On-Module (SOM) based on the Xilinx Zynq® UltraScale+™ MPSoC.
Designed in a small form factor (2.0” x 3.5”) , the UltraZed-EG SOM packages all the necessary functions such as:
• System memory
• Ethernet
• USB
• Configuration memory needed for an embedded processing system.

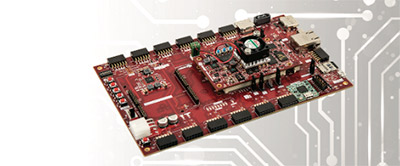

Starter Kit available! The UltraZed-EG™ Starter Kit consists of the UltraZed-EG System-on-Module (SOM) and IO Carrier Card bundled to provide a complete system for prototyping and evaluating systems based on the Xilinx powerful Zynq® UltraScale+™ MPSoC device family.
Carrier Card available! The UltraZed IO Carrier Card supports the UltraZed-EG™ System-on-Module (SOM), providing easy access to the full 180 user I/O, 26 PS MIO, and 4 PS GTR transceivers available from the UltraZed-EG SOM via three Micro Headers. Two 140-pin Micro Headers on the carrier card mate with the UltraZed-EG SOM, connecting 180 of the UltraZed-EG Programmable Logic (PL) I/O to 12 Digilent Pmod™ compatible interfaces, Arduino Shield, LVDS Touch Panel interface, push button switches, DIP switches, LEDs, Xilinx SYSMON, and clock oscillator
Official announcement date:
12/15/2016
When will stock be available?
Starter Kit Available Now
How does this benefit you?
• Cost-effective, production ready SOM
• System bring-up and debug time can be cut in half
•
Enables designers to build high-performance
systems with confidence and ease
• Overall system cost can be reduced by 20% or
more verses a standard chip-down design
Targeted Applications:
• Embedded system-on-module (SOM)
• Embedded vision
• Test & measurement
• Motor control
• Industrial automation |
 |
 |
