STMicroelectronics -
STUSB4700, USB Type C in Car Charging
STM's USB TYPE C applications are very hot after APPLE release their MACBOOK and is oneof fastest charging full solution in the market.
Avnet has developed the USB TYPE C power adaptor using STM core chip which is fully compliance to USB Power Delivery 2.0 standard as the DFP application. It is the most advance USB PD power adaptor solution in the market.
Features
• Wide input voltage range (10VDC~ 26VDC)
• Max Output Power 45W
• Efficiency @ full load is above 98%
• Standby power is below 50mW regardless of input voltage
• USB Type C provider (DFP) and compliance to USB PD 2.0 (release 1.1) standard
• Output:5V/3A,9V/3A,12V/3A,15V/3A
• 20V/2.25A
• Support APPLE MACBOOK fast charging
Application
• USB Type-C PD AC Charging Adaptor
Key Components
• LM5175+STUSB4700
Benefits
• Fast Charging 2.0 certification and support Apple's Macbook fast charging
Related Products/ Solutions
• LDO, Power MOSFET (STM and Avnet have full turn key solution)
Block Diagram

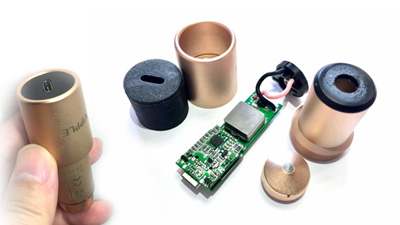

45W PD Car Charger Solution modular ---STUSB4700
