微控制器 - Kinetis & LPC MCUs
Smart. Secured. Secure, Connected.
Features
• Smart
Increasing performance, reducing space & power budgets to deliver more power efficient & intelligent edge node processing
• Secure
Delivering scalable security across the families to facilitate secure edge node processing at right price/performance rations
• Connected
Support for wired & wireless connectivity backbones while facilitating reduced cost of ownership for

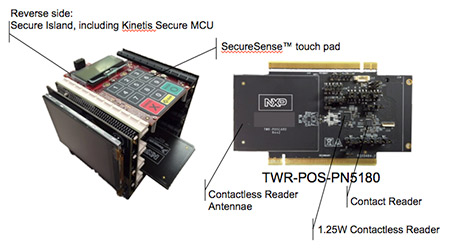

Point of Sale (POS) Reader Solution Overview
• POS Reader Reference Design for applications requiring Payment Card Industry certifications, supporting QVGA display
• NXP PN5180 Contactless, TDA8035 Contact card reader module with KSDK driver support
• Hardware and software, including all drivers, cryptographic libraries, NXP Secure Kinetis K81 MCU
- Pin to pin compatible, covering range of performance and price targets
• Chip-and-PIN keypad based on Cirque® SecureSense™ technology
• CardTek L2 CT/CL EMVCo Certifiable Stack
• Target Applications:
-Point of Sales Terminals, Contact & Contactless
-Automatic Teller Machine PIN Pad + Reader
-Building and Home Automation, Secure Access Control
• Availability: Sampling now, Launch Sep ‘16
• Certifications & Testing:
- TWR-POS-K81 PCI 4.1 Certified as PIN Entry Device (PED)*
- PCI silicon pre-certification
- CAVP (crypto assurance validation program) certified
- TRNG entropy evaluation
- EMVCo L1 CT/CL pre-certified

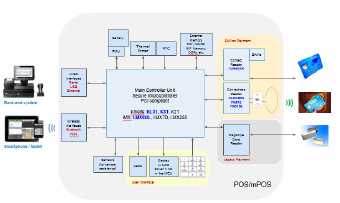

Target application and NXP product
EPOS
| Application |
Product |
Features |
| T-POS |
i.MX6UL
i.MX258 |
High cost-effective，Cortex-A7，
low power, PCI4.x standard |
QRPOS
MPOS |
K81/KL81
K21F/K21D |
PCI4.x standard，
Camera interface |
|
 |

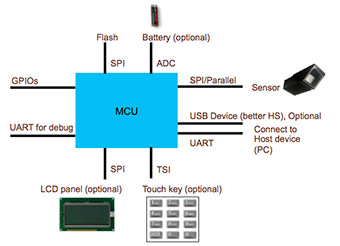

Finger Printer
| Application |
Product |
Features |
Photoelectric
sensor F.P.
|
LPC541xx,
K22FN |
Customer has own algorithm.
Low power consumption and
big RAM size (LPC5411x) |
Photoelectric
sensor F.P. |
KL16,
LPC8xx |
Customer uses the algorithm from
P.E. SOC vendor. MCU is for
control purpose |
Semicon
sensor F.P.
|
LPC541xx,
K8x |
Stable solution with the cooperation
with finger printer chip vendor |
Cap sensor
F.P.
|
KL16,
LPC8xx |
Multiple serial ports to adapt for
different applications |
|
 |

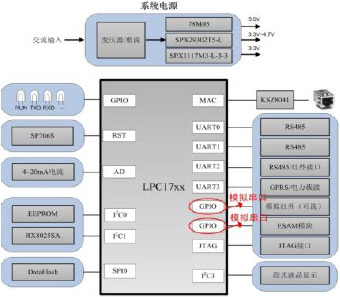

Power data concentrator
| Application |
Product |
Features |
| Type-I |
LPC1778FBD208,
LPC4078FBD208,
MK64FX512VLQ12,
LPC54606 |
Robustness，>128个GPIO
（Type-I），>100 GPIO
（Type-II）, Ethernet，
USB HOST，>100MHz，
external memory interface
（Flash and RAM），
5 UARTs |
| Type-II |
LPC1778FBD144,
LPC4078FBD144,
MK64FX512VLQ12,
LPC54606
|
|
 |
